D1RETRO89 Retrofit D-1 Replaces 51489 and Board

Dimension One retro fit kit designed to allow for replacement of 51489 / 1560-164_1560-165 (which is obsoleted) with new topside and circuit board.
Verify correct kit by locating model on table located below.

Features:

• Easy Installation With Detailed Instructions
• No Specialty Tools Required
• Fit Existing Control Box For Quick Easy Swap
• Board Has Same Size & Shape As Original.
• Topside Has Same Size As Original.

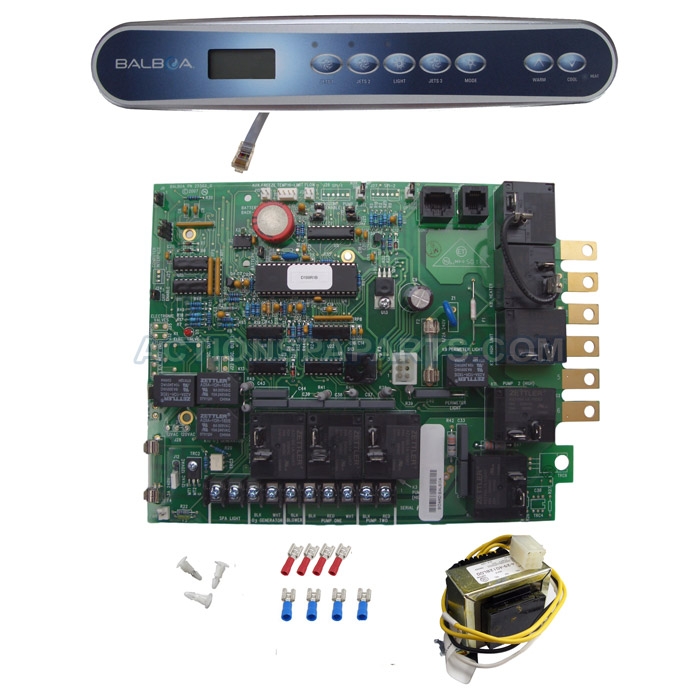

Kit includes:-

• Topside Control Panel
• Circuit Board
• Transformer
• Circuit Board Stand Off (x3)
• 22-18 Crimp On Spade Connector (x4)
• 16-14 Crimp On Spade Connector (x4)
• Instruction Sheet

The correct kit is determined by the year and model of the spa.

Model	Year	Replacement Kit Number
Arena D1SL	1998 All 1999 Up To Serial # 62550	D1Retro89
Arena SL	1997 All	D1Retro89
Aurora II	1998 All 1999 Up To Serial # 63891	D1Retro83
Aurora D1SL	1998 All 1999 Up To Serial # 62584	D1Retro89
Aurora HP	1997 All	D1Retro86
California	1997 All	D1Retro86
California	1998 All 1999 Up To Serial # 63863	D1Retro83
Chairman	1997 All	D1Retro83
Chairman	1998 All 1999 Up To Serial # 63869	D1Retro83
Chairman II	1999 Up To Serial # 64315	D1Retro83
Cimmeron SL	1996 All 1997 All	D1Retro89
Diamante SL	1997 All	D1Retro89
Diplomat	1997 All 1998 All 1999 Up To Serial # 63872	D1Retro83
Interlude SL	1997 All 1998 All 1999 Up To Serial # 62553	D1Retro89
Luxxor	1997 All	D1Retro83
Nautilus	1997 All	D1Retro86
Nautilus	1998 All 1999 Up To Serial # 64003	D1Retro83
Quadra	1997 All 1998 All 1999 Up To Serial # 62795	D1Retro89
Santiago	1996 All 1997 All	D1Retro86
Sedona	1997 All	D1Retro83
Sierra SL	1996 All 1997 All	D1Retro89
Taos	1997 All	D1Retro86
Tiberon	1997 All	D1Retro86
Triad	1998 All 1999 Up To Serial # 62614	D1Retro89
Triton	1997 All	D1Retro89

Manufacturer: CSI
MPN: D1RETRO89
