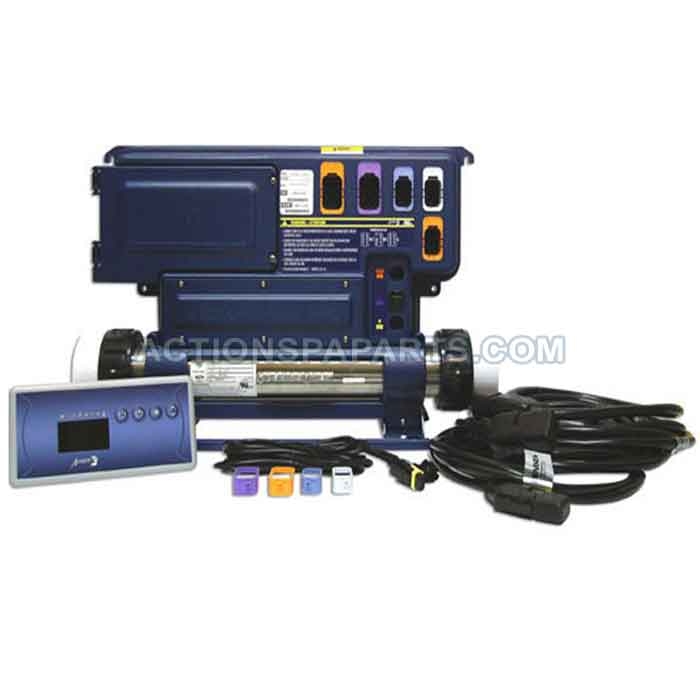

BDLXE04 IN.XE Bundled 1 Pump Systems

Pack Dimensions:

Pack Height: 12"
Pack Length:  18"
Pack Width:  4-5/8"
Heater: 2" x 15"

Included Topside Panel:

BDLK192OP Panel 3-1/4" x 7"

IN.XE Features:

• in.put new input terminal bloc

  In.xe's cable bay was designed to ease wire insertion. Its terminal bloc has more room to insert wires. Tighter input connection reduces heat generated for increased component lifetime.

• in.axess board access prevention

  Only serviceable parts, terminal bloc, fuses, heater and probe connectors, are made accessible to service technicians. Electronic components are protected in separate and inaccessible compartments.

• in.seal watertight protection

  In.seal provides extra level of protection against water infiltration. Connectors and power box are designed to be watertight and no water can be in direct contact with electrical components. (IPX5)

• in.link plugs and connectors

  Totally waterproof, in.link plugs and connectors are designed to ensure that all cables of equipment used to make a spa work properly are well connected at their intended connection port, eliminating any risk of mis-wiring.

• in.flo solid state monitoring

  In.flo is an all-electronic dry-fire protection of in.xe's heat.wav heater. In.flo eliminates the burden of adjustments, calibrations and failures associated to usual water flow sensors.

• in.kin kinetic heat monitoring

  In.xe design includes in.kin, a contactor that protects spas and spa users against water overheat. In.kin is the industry's first and only true kinetic heat protection because it monitors all pump outputs, not just the "heating" pump.

• in.t.cip water temp. algorithm

  In.xe also monitors water temperature through in.t.cip, our breakthrough software algorithm that calculates optimal time to start pumps and get water temperature readings.

• in.stik software auto-uploader

  In.stik is another cool in.xe feature, a pen drive software auto-uploader with an in.link connector. In.stik connects to in.xe and contains software to program or configure its system. In.xe executes the data upload and update automatically.

IN.LINK Cordset Included:

9920-101436 Cable Kit
Includes:

• High current 2 speeds 240V
• High current 1 speed 240V
• Low current 240V
• Low current 120V
• Light cord with harness

  Optional:


  IN.CLEAR BROMINE SALT GENERATOR STARTER KIT
