Control System, Gecko, In.Ye-5, 2 Pumps & Blower, IN.K450 Topside BDLYE5K450

Manufacturer: Gecko
SKU: bdlye5k450
Manufacturer part number: BDLYE5K450
$512.85
$486.64
This complete Gecko IN.YE5 retrofit spa pack can be hooked up 120/240V
Overall dimensions are 10-3/4" Tall x 19-5/8" Wide x 5" Deep


Operates (Up to 5 items from list below. 2 Speed pumps count as two items.)
Example: 2 Speed Pump 1, 1 Speed Pump 2, Blower, and Ozone

  • Pump 1
  • Pump 2
  • Pump 3
  • Pump 4
  • Pump 5
  • Blower,
  • Circulation Pump
  • Ozone

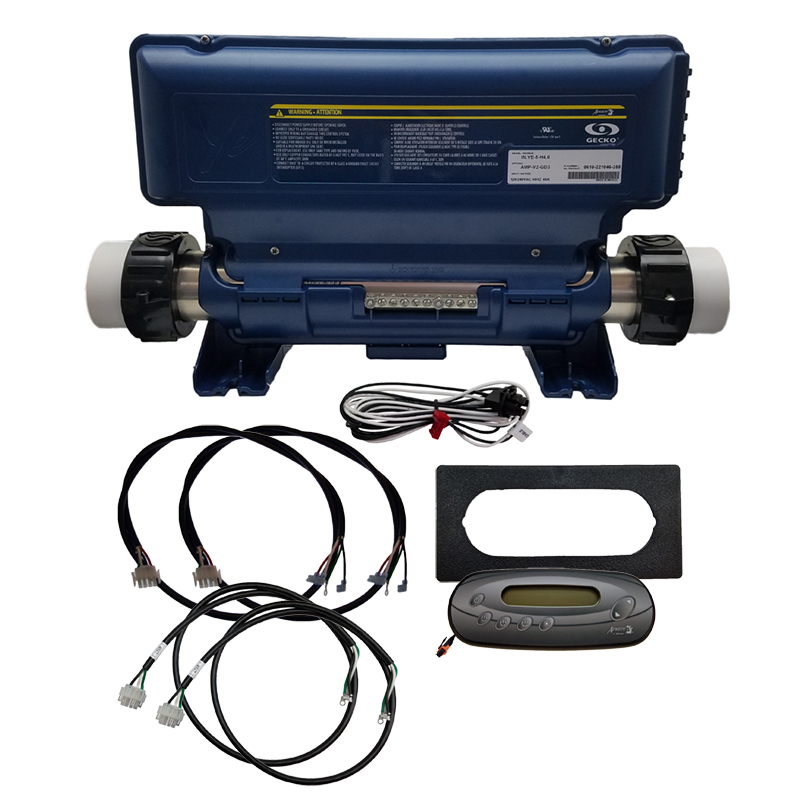

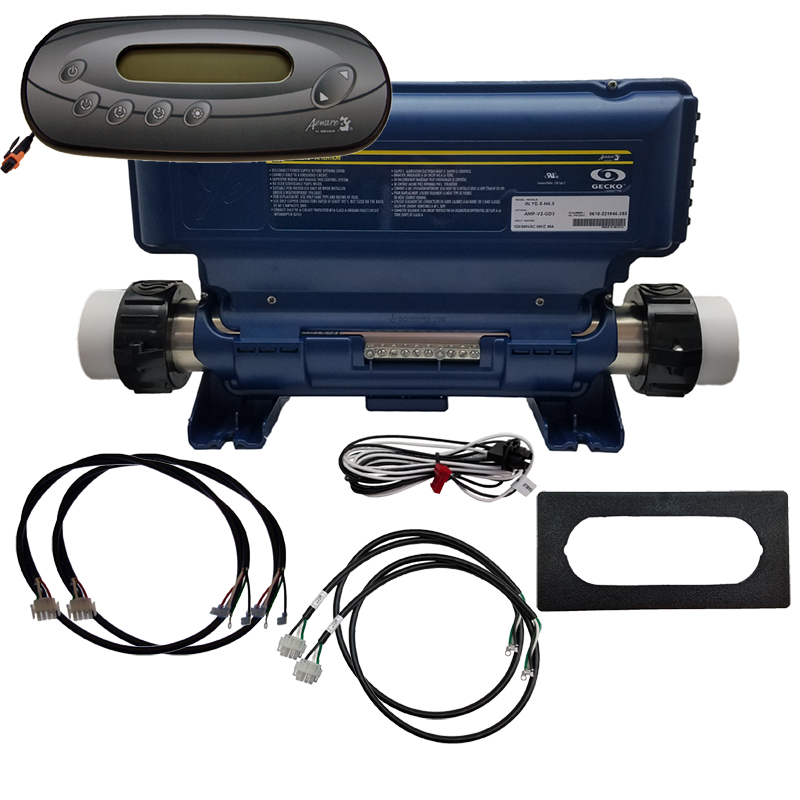

Includes:

  • 1.0/4.0kW 120/240 V Heater
  • K450 topside control panel (3" x 7-1/4")
  • Adapter plate
  • 12v Light harness
  • 2 Two speed pump cords
  • 2 One speed pump cords
  • Direct output socket for accessory

Features & Benefits:
✔ Programmable filter cycles
✔ Corrosion-free enclosure
✔ Supports keypads, heater, a 12 V light, and 5 configurable relays.
✔ Solid-state water flow detection: No pressure switch to adjust
✔ IPX5 rated waterproof design
✔ Preloaded configuration allows fast and easy installation
✔ Convertible 120/240 V
✔ Each output voltage can be configured 120/240 V
✔ AMP style connectors
✔ Standard 4 kW, 2” x 15” flow thru heater (minimum of 20GPM required)
✔ Aeware keypad compatible
✔ Temperature probe is built into the heater
✔ Kinetic heat, overheat & anti-freeze protections
✔ Self-Diagnostic

    Manufacturer: Gecko
    MPN: BDLYE5K450
