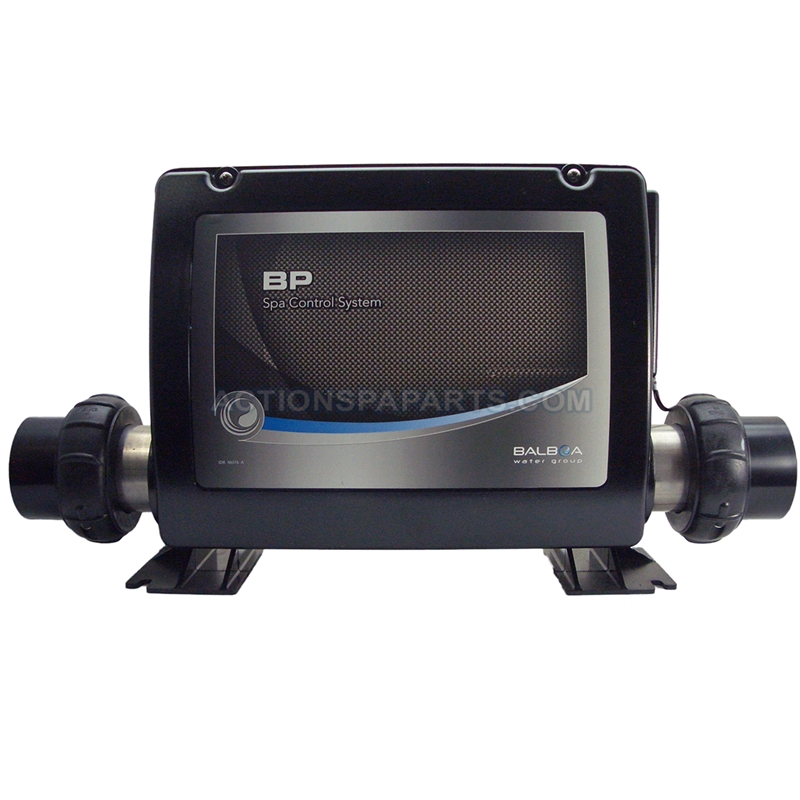

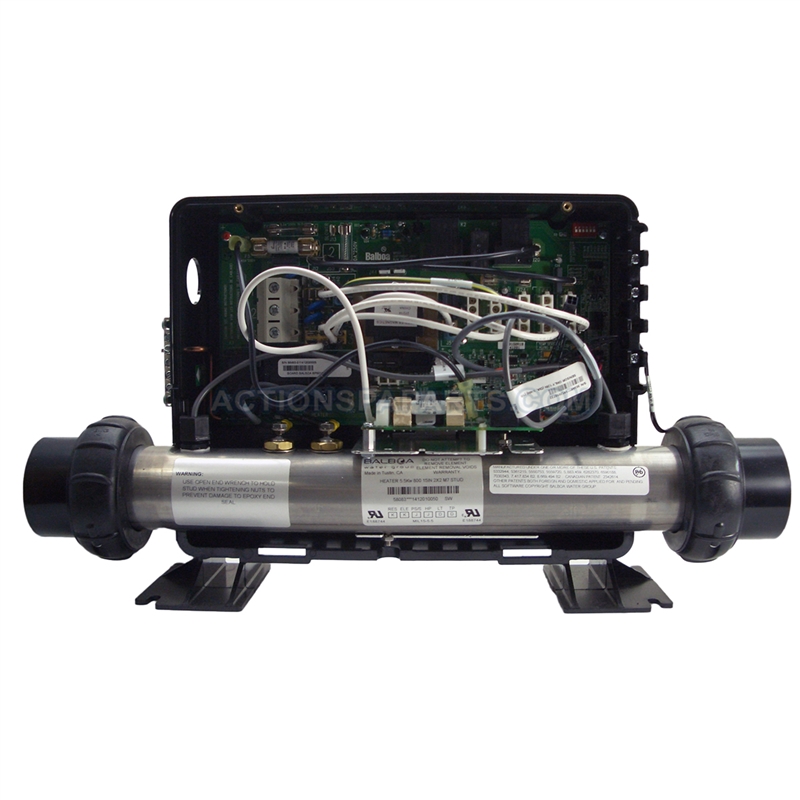

56480 Control System Balboa BP501G2 2 Pumps & Blower

Balboa BP-501G2 that can be hooked up 120/240V OR 240V 60A (4 Wire)
Overall dimensions are 10.56" Tall x 15" Wide x 4.80" Deep

Operates

• 2 Speed Pump 1 120/240V
• 1 Speed Pump 2 120/240V or Blower 120/240V
• 2 Speed Pump 3 120/240V
• Circulation Pump 120/240V*
• Ozone 120/240V*
• Auxillary Hot Port 120/240V
• 12V Light
• 5.5KW Heater

*= Circulation pump and ozone must be matching voltage.

Features & Benefits:

• Wi-Fi Ready
• Quick Connect heater power plug
• Replaces failure-prone mechanical pressure/flow switch
• Can be plumbed to either suction or pressure side of pump
• 120/240V convertible power
• M7 flow/ temperature sensors
• Rigorously tested
• UL recognized

Manufacturer: Balboa
MPN: 56480
